Description

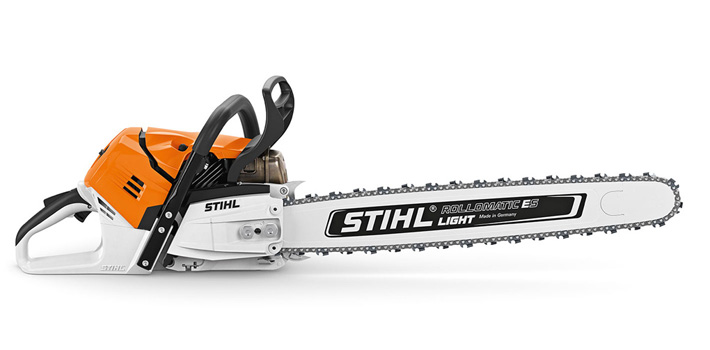

First ever chainsaw with STIHL Injection Technology. The best power-to-weight ratio on the market, and the simplest operation. Ideally suited to arboriculture and harvesting and processing large timber. All thanks to its unique lightweight design and outstanding acceleration. New bumper spikes, HD2 filter, captive nut on the sprocket cover for easy chain change, controlled-delivery oil pump, and tool-free fuel cap for safe and easy filling with fuels and lubricants.

Available on a 20″ or 25″ Bar

Technical data

Displacement cm³ 79.2
Power output kW/bhp 5/6.8
Weight kg 1) 6.2
System weight kg 2) 7.47 / 7.78
Power-to-weight ratio kg/kW 1.2
Sound pressure level dB(A) 3) 106
Sound power level dB(A) 3) 119
Vibration values left/right m/s² 4) 4.2/4
Oil pump Adjustable
Tank volume l 0.78
Chain pitch 3/8″
Chain tensioning Side chain tensioner
Sprocket – number of teeth 7
Filter Cartridge filter HD2
Bumper spike Steel spike
Cylinder 4 channel / chrome
Oil tank volume cm3 325
Sprocket Rim sprocket
Anti vibration system Full AV-System
Filler cap Tool-free tank cap
EPA Certified fuel consumption l/h 2.707
CO2 g/kWh 707
